532NM 200MW 绿光激光模组 半导体制冷





532NM 200MW 绿光激光模组 半导体制冷
Such products can be widely used in various stage laser light, with TTL modulation, can work for a long time, industrial laser real. Can provide a solution for the customers, designed to meet customer demand for laser module.

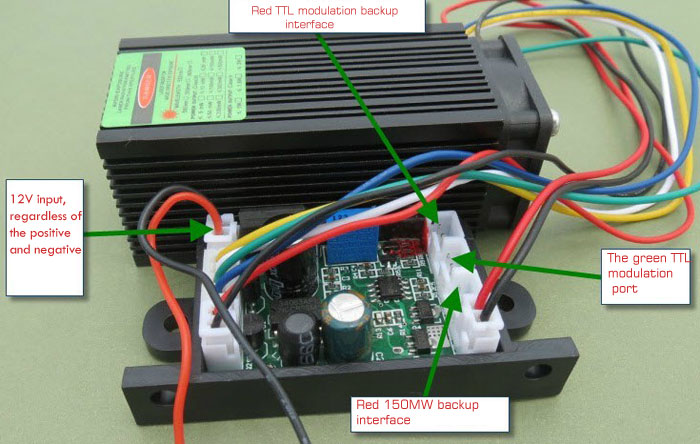

Many users don't know how to use this kind of product, in fact it is very simply, you just need to connect the 12V power,or you can use a 12V transformer plug and connect to 220V AC power, then it can work.

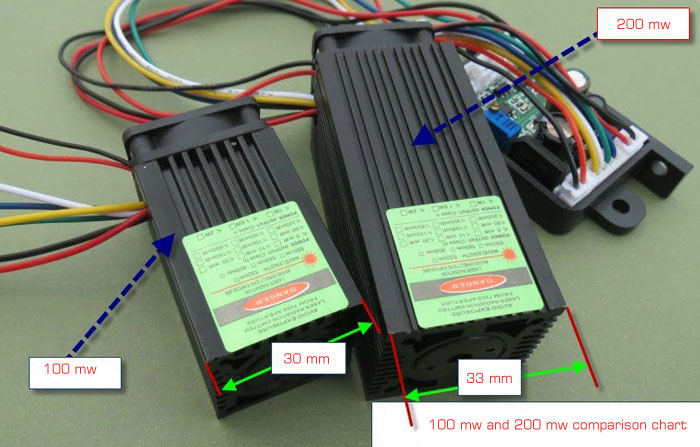

Size: 71.5mm*35mm*20mm
Battery Size: 71.5mm*35mm*20mm
Output Wavelength: 532 nm
Output Power: 190-230mW
Refrigeration mode: Fan Cooling
Continuous Work: Yes
Frequency mondulation: TTL 0-30K HZ
Outside Color: Black
Material: Aluminum Alloy
Electric-control: Constant-current
Anti Access Protection: Yes
Operating Voltage: AC/DC=12V
Operating Current: I<850mA
Warm-up time: No
Operating Current: -10℃~+40℃
Storage Temperature: -10℃~+40℃

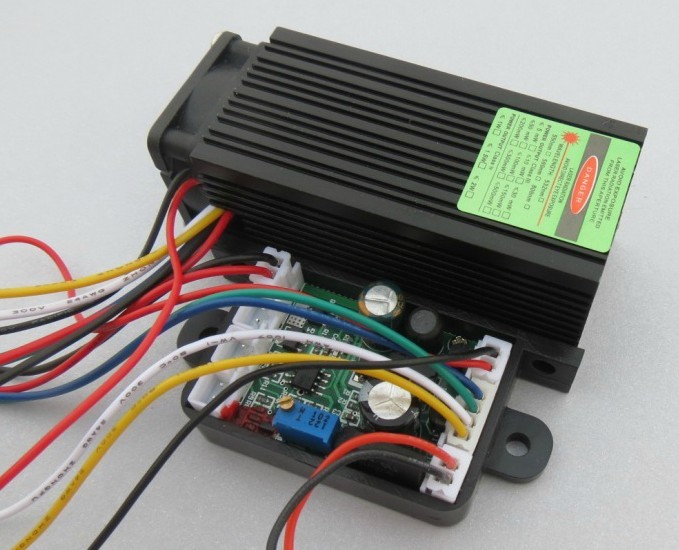

Structure: Laser tube + Lens + Radiating shell
Note: The power and the laser head are split,there is a fan cooling in the laser head.
