欧司朗 520nm 30mW PTL5 520 绿色激光二极管 TO56

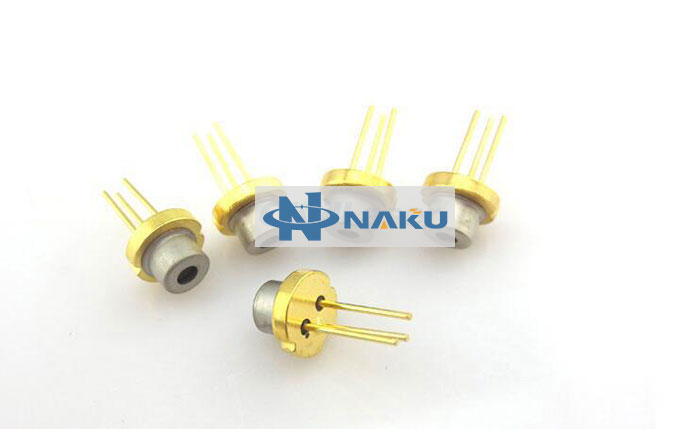

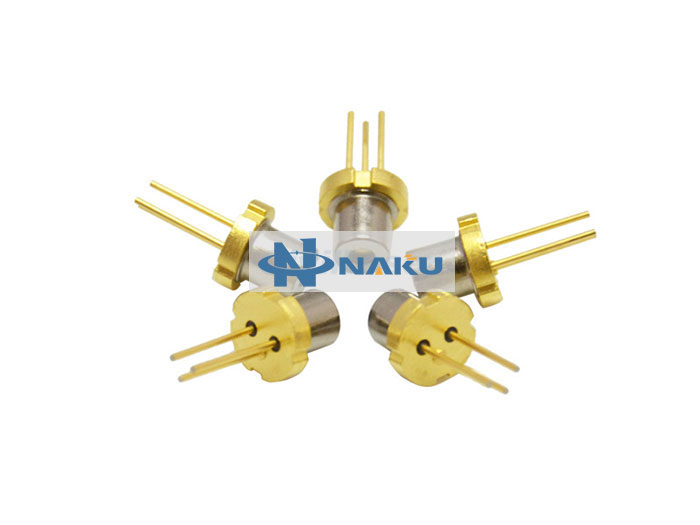

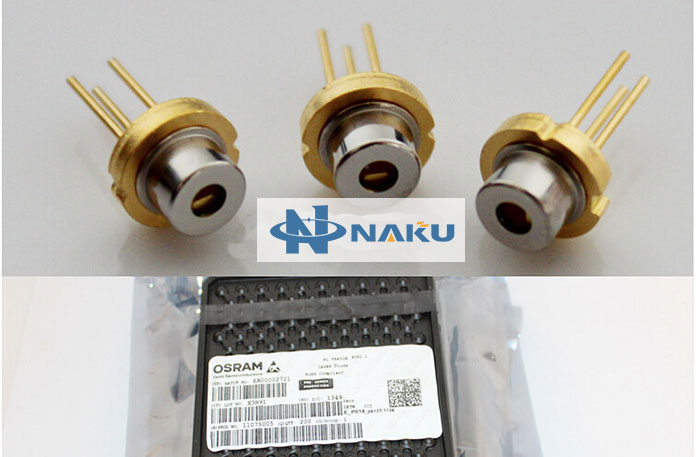

OSRAM 520nm 30mw PTL5 520 Green Laser Diode TO56

[Features]
Optical output power (continuous wave):50 & 30mW(Tcase=25℃)
Typical emission wavelength:520nm
Efficient radiation source for cw and plused operation
Single transverse mode semiconductor laser
High modulation bandwidth
TO56 package with photo diode

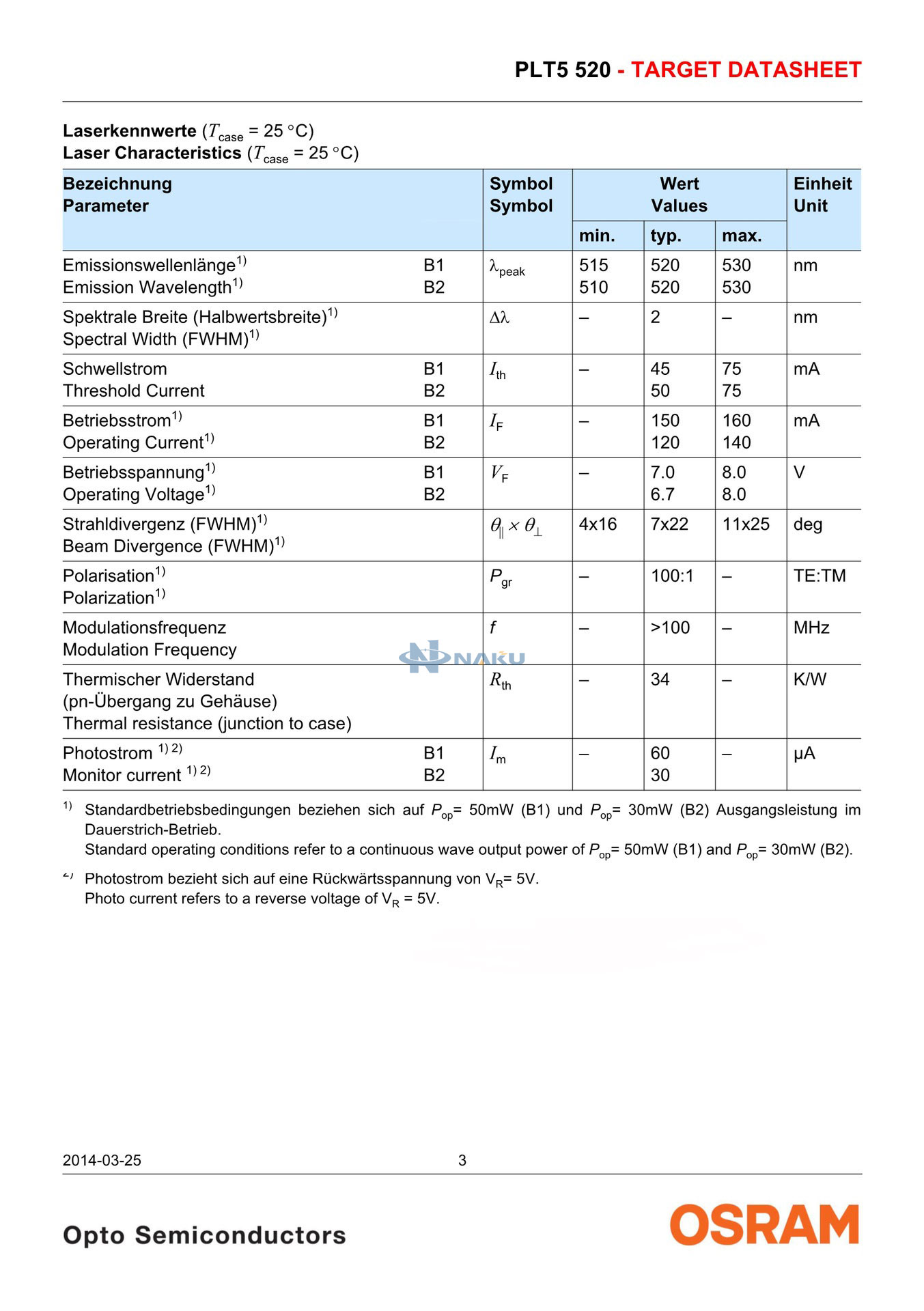

[Specifications]
Type:PLT5 520
Output Wavelength:520nm
Output Power:30mW
Operating Current (Tm=25℃): 200mA
Storage Temperature:-40~85℃
Operating Case Temperature: -20~60℃
Reverse Voltage:2V
Soldering Temperature max.10.sec:260℃
Junction  Temperature:150℃

Emission Wavelwngth:510nm-530nm
Spectral Width:2nm
Threshold Current:50-75mA
Opreating Current:120-140mA
Operating Voltage:6.7-8.0V
Beam Divergence :4*16 deg-11*25 deg
Modulation Frequency:>100MHz
