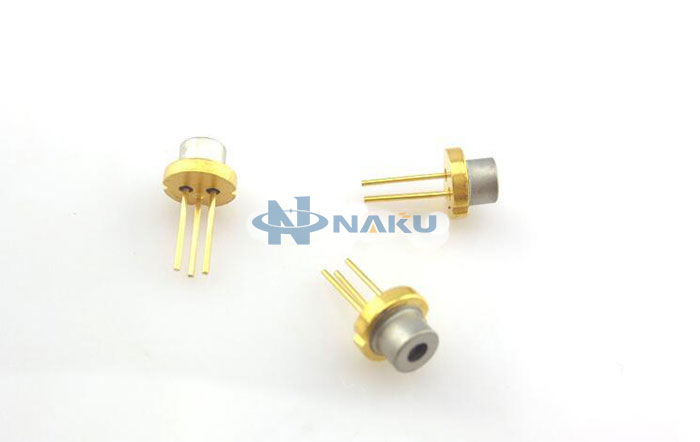

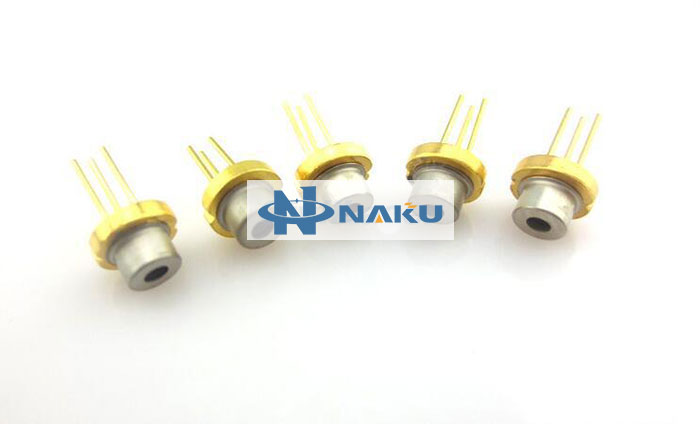

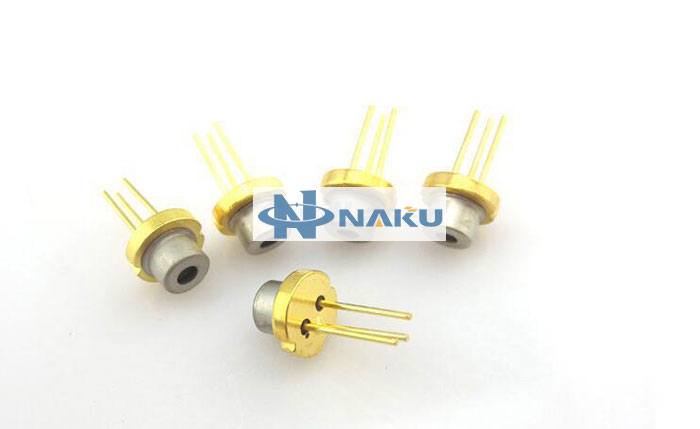

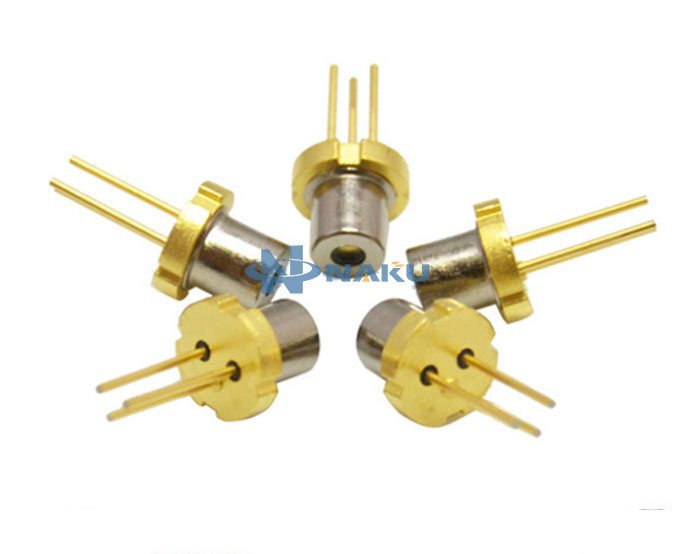

405nm 500mW Hitachi HL40023MG TO18-5.6mm Blue Violet Laser Diode


[Features]
Optical Output Power:Po=400mW(CW)
Violet lasing : 398-410nm
Low operating current: lop=390mA Typ.
Low operating voltage: vop=5.5V max.
Small package :Φ5.6mm
Multi transverse mode oscillation

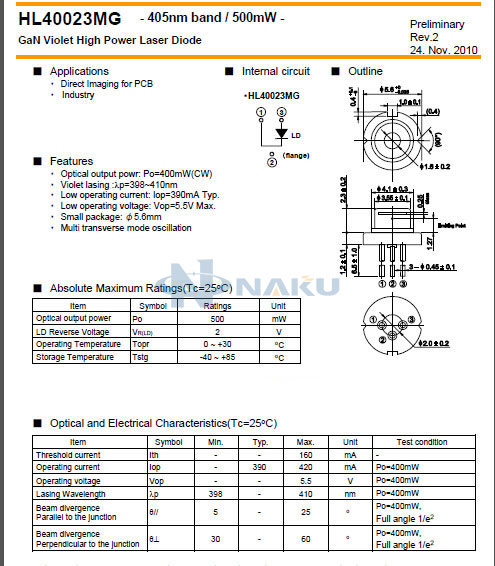

[Specifications]
Output Wavelength:405nm
Output Power:500mw
LD Reverse Voltage (Tc=25℃): 2V
Storage Temperature:-40~85℃
Operating Temperature:  0~30℃


Initial Electrical/ Optical Characteristics(Tc=25℃):
Optical Output Power  500mW
Dominant Wavelength   398nm-410nm
Threshold Current       <160mA
Operating Current       <420mA
Operating Voltage        <5.5V
Beam Divergence  Parallel   5º~25º
Beam Divergence  Perpendicular 30º~60º
