980nm 30mW~100mw 红外线激光发射器 隐形多点触控激光头

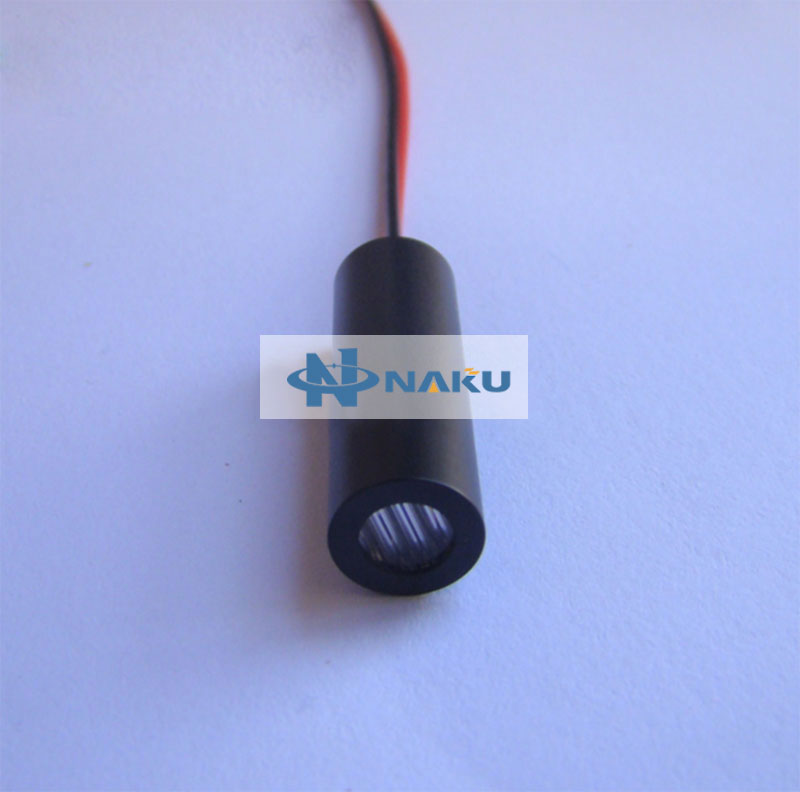

980nm 30mW~100mw Infrared Line laser transmitter Invisible multi touch laser head

SPECIFICATIONS:
Name:  980nm 30mW~100mw Infrared Line laser
Output Wavelength: 980nm ±5nm
Output Power: 30mw, 50mw, 100mw
Class level: Class IIIB
Laser Shape: Line
Range: <5 meters
Material: Brass color, black (black fog oxidation)
Laser type: IR laser
Shape/dimension: Line, line width<1.0mm, <5mm at 1m distance
Fan angle: 36.5°，60°，90°, 110°(Optional, 90° is default,leave a comment if you need other fan angle)
Circuit control: APC
Size: Φ9x26mm, Φ10x30mm(default)
Operating Voltage:  DC=3.0V~DC5.0V
Operating current: I<95mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty

Package List：
1*IR line Laser Module；
