780nm 100mW 光纤耦合激光器 近赤外半导体激光器 连续激光

780nm 100mW Fiber Coupled IR Semiconductor Laser CW Laser

[Specifications]
Product Name: 780nm 100mw Fiber Coupled Laser
Lead Time: 7~15 workingdays! Custom product available!
Output Wavelength: 780nm+/-5
Output Power: 100mw
Optical fiber core diameter: 200um(Default) -- (100um/200um/400um/600um/800um/1000um -- Can be customized)
Operating mode: CW or Modulation
Spatial mode: Multi Mode
Fiber diameter: 100um 200um
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Laser dimensions: 100(L)x40(W)x50(H) mm

Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)

Modulation:  0~30khz Analog or TTL
Interface type: FC/PC (default), FC/APC, SMA905 (If you need FC/APC or SMA905 interface please leave a comment when you place the order.)

[Package include]

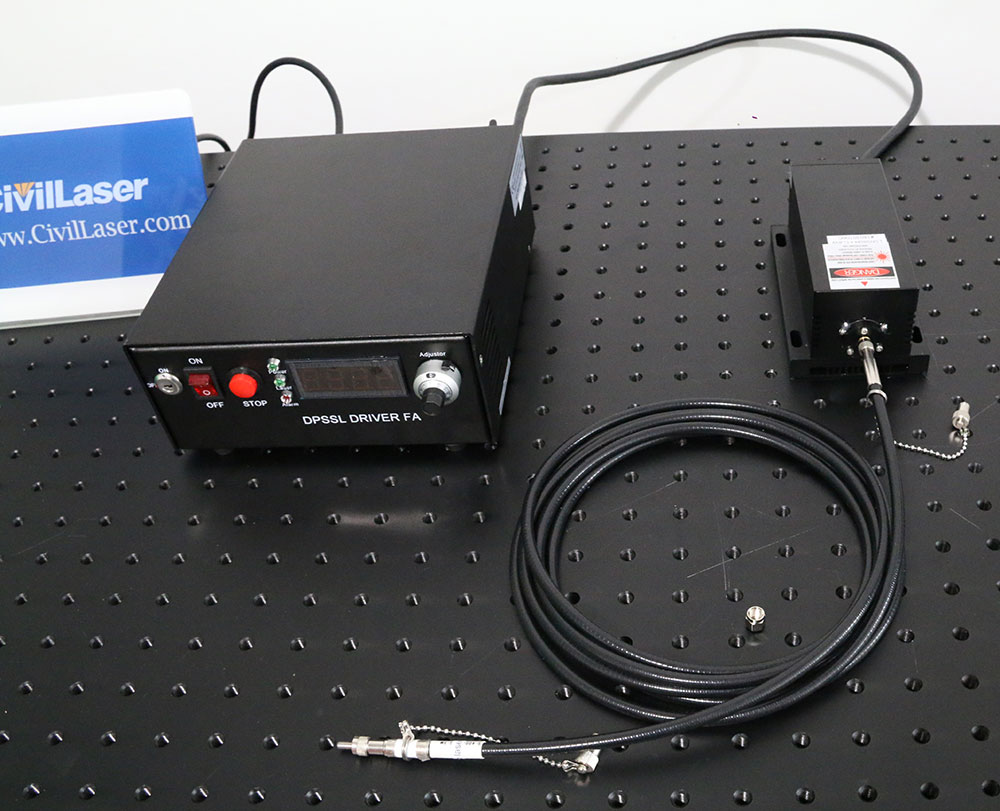

1 x 780nm Fiber coupled  Laser
1 x Laser power supply

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
           For example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
