远程超小光斑尺寸 红/绿/蓝 激光 0~100mW 正圆形激光模组

价格:$1.00

(最新的价格,请联系我们.)

请选择:



购买数量:


远程超小光斑尺寸 红/绿/蓝 激光 0~100mW 正圆形激光模组

Long range ultra small spot size Red/Green/Blue laser 0~100mW use Perfect Circular laser module

Specifications:

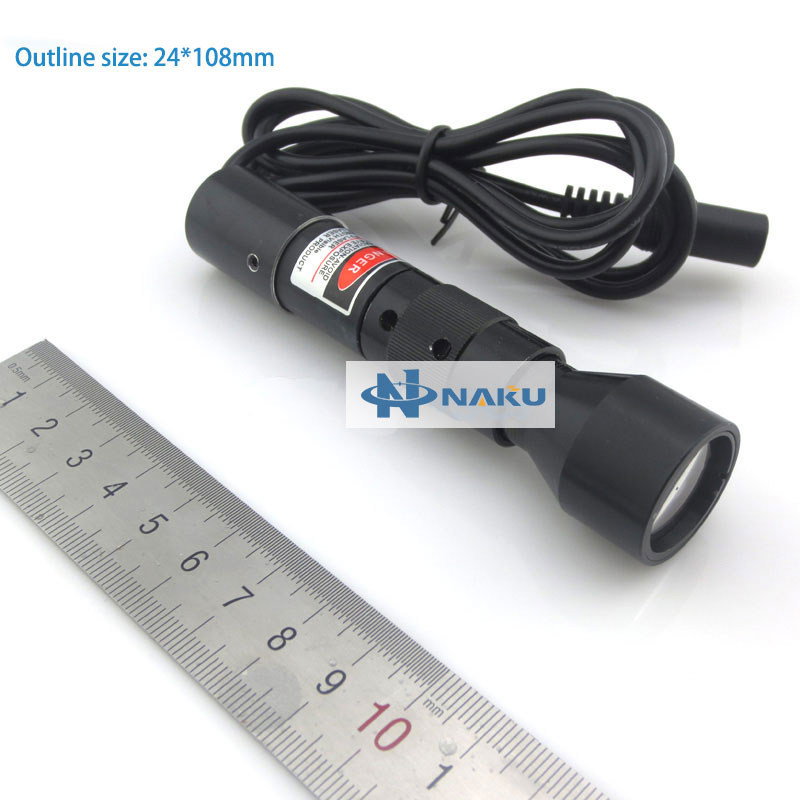

Laser dimension: 24*108mm
Red laser: 650nm/100mw
Green laser: 520nm/50mw
Blue laser: 100mw

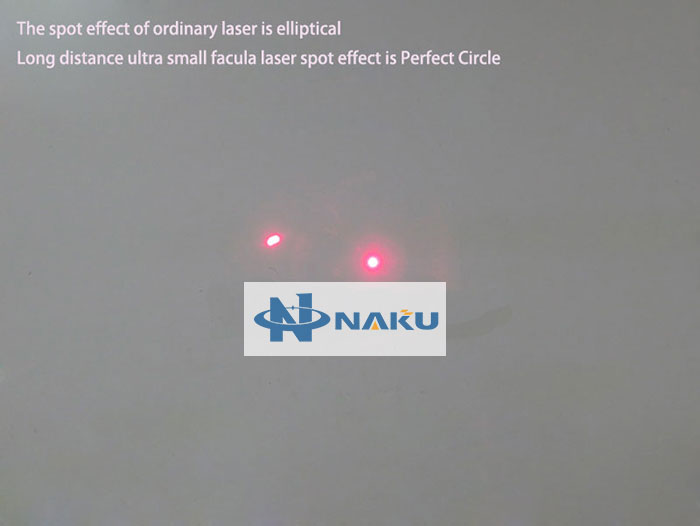

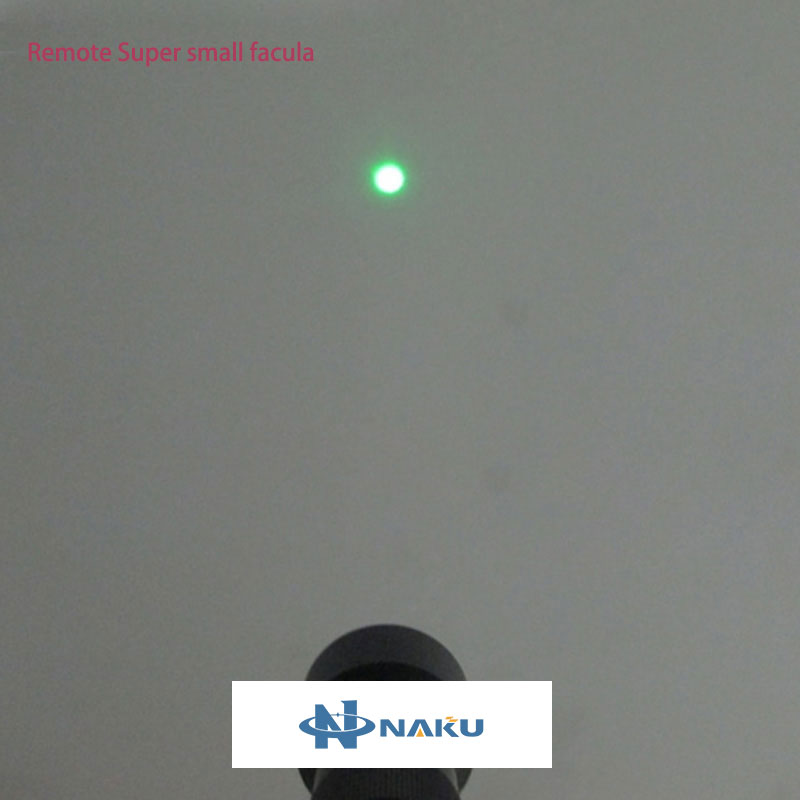

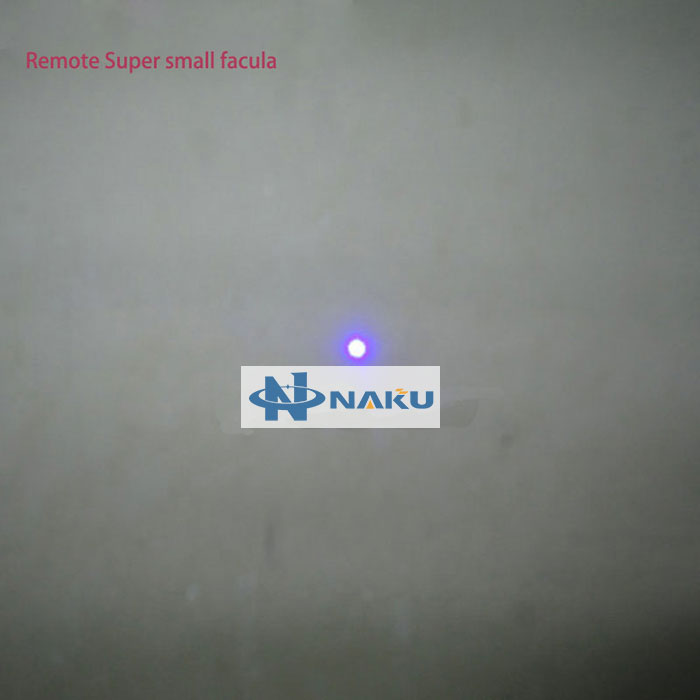

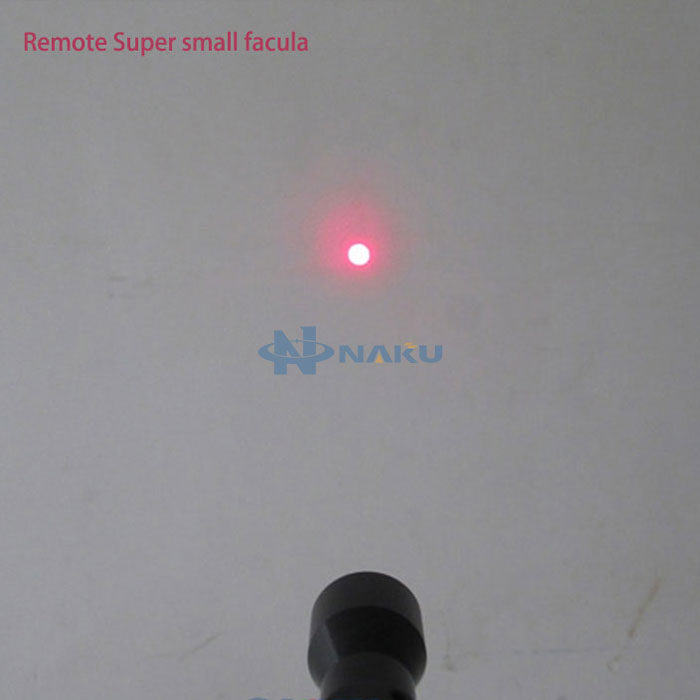

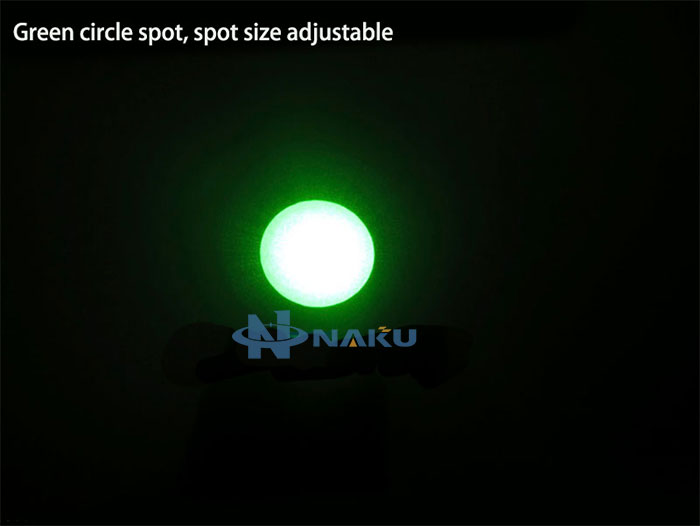

Spot mode: Perfect Circle Spot (spot size adjustable)

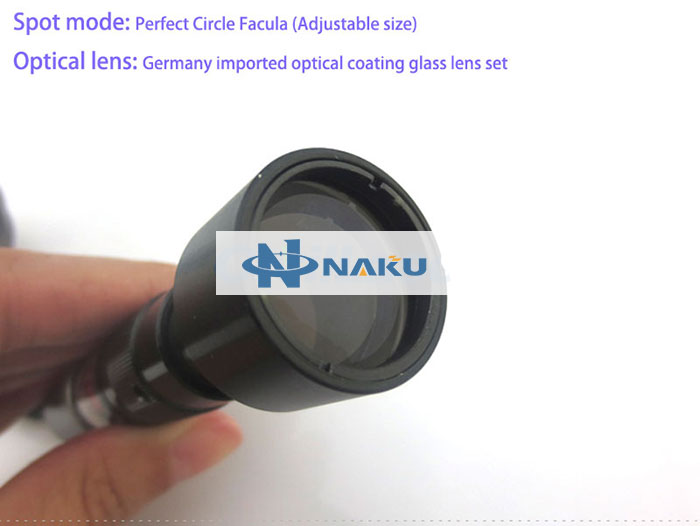

Optical lens: Germany imported optical coating glass lens set

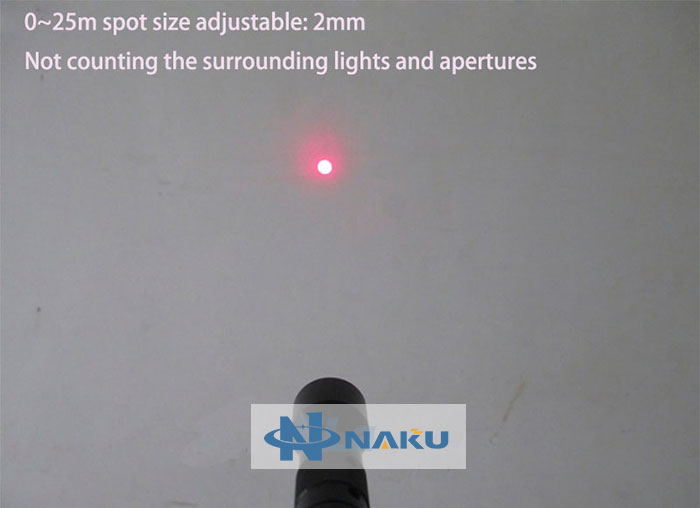

1-20 meters adjustable small spot: 2mm (Note: Not counting the peripheral aperture and stray light)

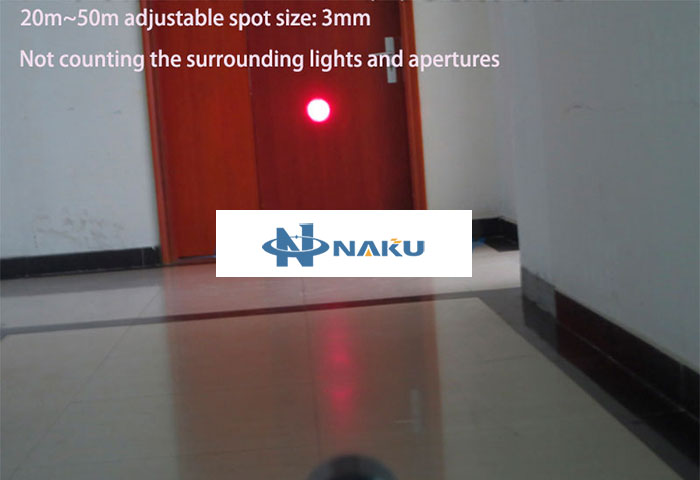

20-50 meters adjustable small spot: 3mm (Note: Not counting the peripheral aperture and stray light)

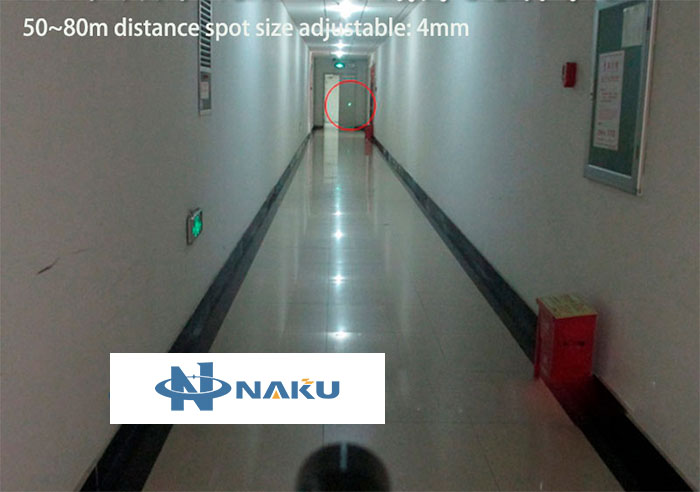

50-80 meters adjustable small spot: 4mm (Note: Not counting the peripheral aperture and stray light)

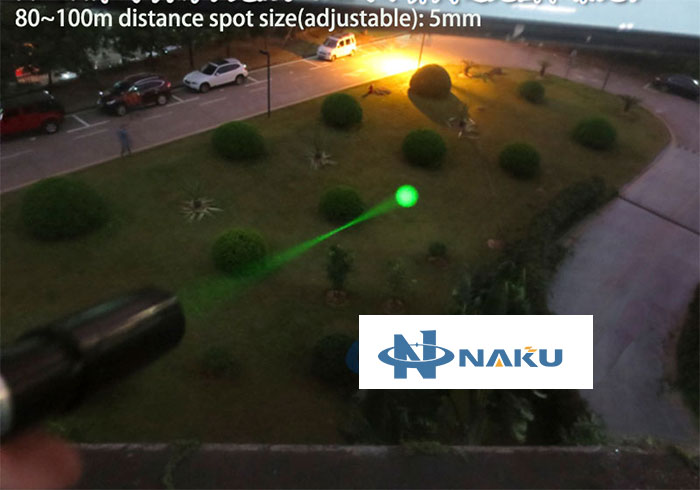

80-100 meters adjustable small spot: 5mm (Note: Not counting the peripheral aperture and stray light)

Advantage:
1, Can adjust to ultra small round spot with uniform brightness laser light at long distance;

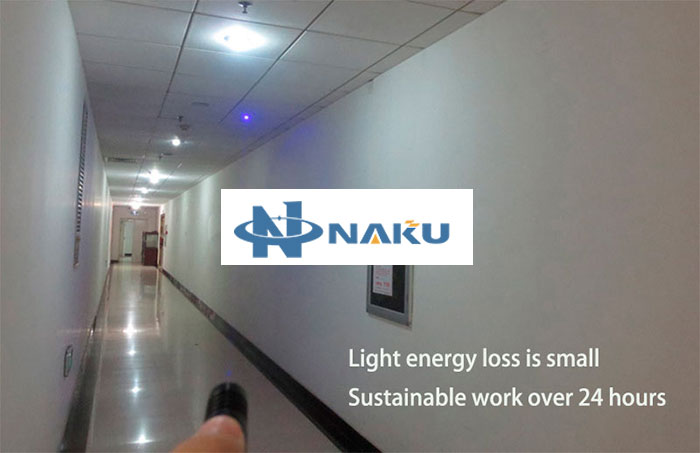

2, New German import tube + optical coating glass lens set, Light passing rate is high and energy loss is small, it's open 24 hours a day;
3, Intelligent drive board with imported IC can supply power in 2.8-5.2V wide range;
4, The internal heat filled with silica gel and AB glue can make heat dissipation and shockproof;
5, The shell is made of aviation aluminium plating insulation paint, which can be fully radiating, shock resistant, anti throwing and anti-static;
6, High temperature resistance, corrosion resistant DC plug line, suitable for all-weather and full environment use;

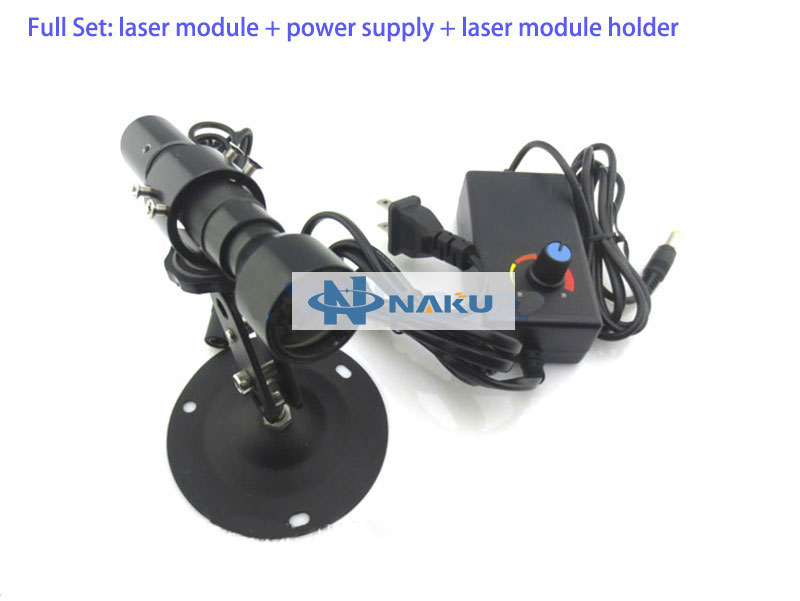

[Package Includes]
1 x Red circle laser module
1 x Power supply
1 x Laser Holder
