638nm 300mW 一字线/十字线 高功率红色激光模组

638nm 300mw Line and Crosshair High power Red laser module

SPECIFICATIONS:
Name: 638nm 300mw Line and Crosshair High power Red laser module
Output Wavelength: 638nm
Output Power: ≤300mw
Laser Shape: Line/Crosshair
Laser type: Red laser
Outside Color: Black
Size: 26*110mm(Can be customized)
Current: ≤500mA
Operating Voltage: DC 2.8-5.2(V)
Operating Temperature: -10℃~50℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway


Package includes:
1* Red laser module;
1* Laser mount;
1* Adjustable Power supply;

The advantages of this laser module as below:
1,  635nm 300mw ultra high power red laser module, ultra high brightness indoor and outdoor use and suitable for any harsh environment;
2, The red line width is selectable from 0.4 millimeters to a few centimeters;
3, Lens angle from 5 degrees to 120 degrees optional;
4, 638nm wavelength laser is pure red, the light is clear and bright and soft without glare;
5, High quality Taiwan lens, can continously work for more than 24 hours;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Normal use, more than 5 years of service life.

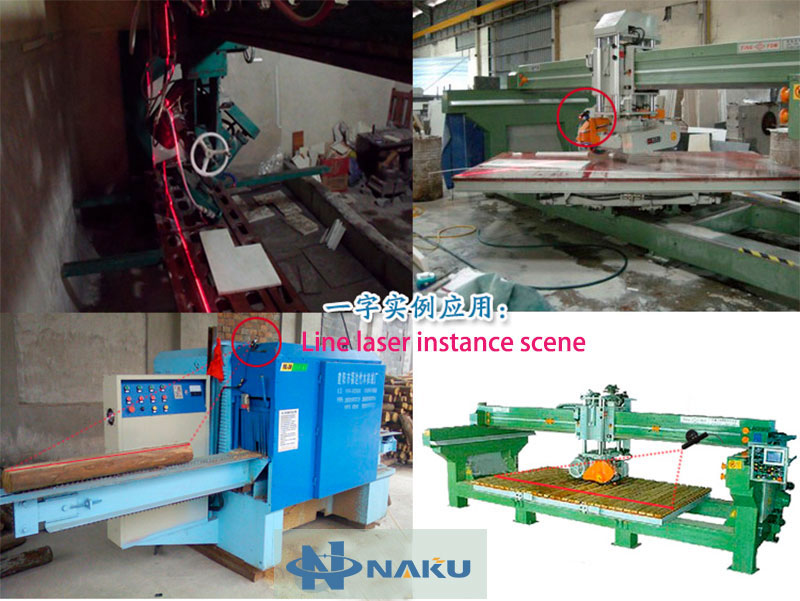

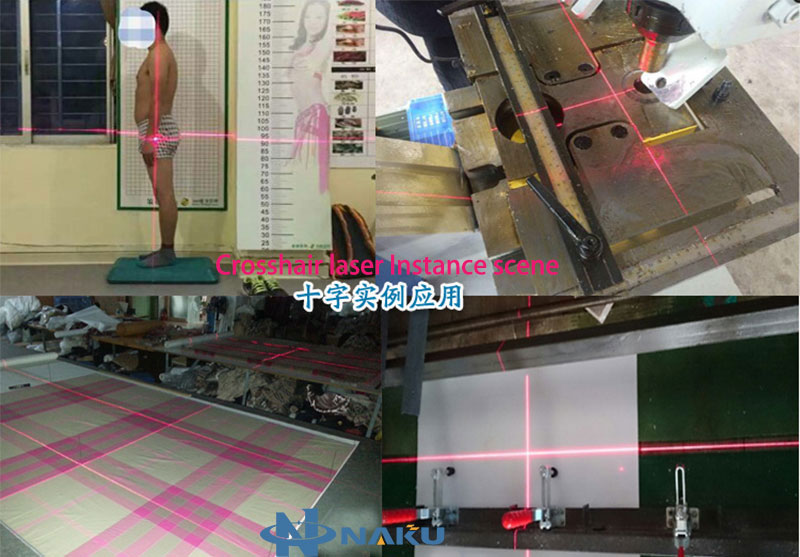

Widely used in stone factory / brick factory / wood factory / clothing factory / mechanical equipment, such as marking positioning
