Lab Adjustable power supply for DPSS laser





Lab Adjustable power supply for DPSS laser

[Model#1 -- Specifications]
 Product Name: Lab Adjustable power supply for DPSS laser
 Output Current:  0~3.0 A
 Output Voltage: 5.0v
 Repetition Rate: DC~30khz 0~5V Analog /TTL
 Input Voltage: 85~265VAC, 50/60Hz
 Size:  170(L)x150(W)x56(H)mm3
 Weight: 800g

[Model#2 -- Specifications]
LD drive current: 0~8.0 A
External modulation: DC~30khz 0~5V Analog /TTL
Drive Current: 6.0 A
Drive voltage: 5.0V
Temperature control mode: <0.1℃
Temperature control range: 5~40℃
Operating Temperature: 0~50℃
Input Voltage: 90~264VAC, 50/60Hz
Weight: 1500g
Size: 178(W)x197(D)x84(H) mm3

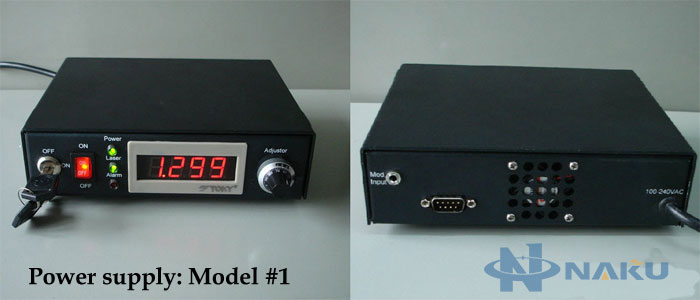

Power supply: Model #1

Power supply: Model #2

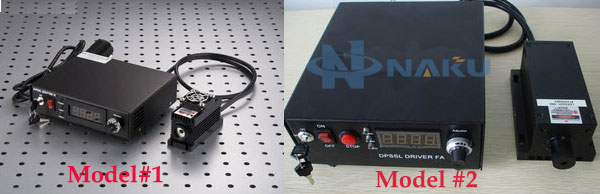

Different style of the laser outer shell,use different power supply

 1. 3 months warranty from the date of delivery.
 2. We accept return & refund within 7 days after delivery for quality problem.

 1. High Power Laser Diode Bars, Arrays, Stacks
 2. High Power DPSS Lasers
 3. Industry Laser Power Supply
 4. Lab Research Applications.

 [Buyer Notice]
 1.  Buyers must be 18 years old and must have enough experience of using high power laser diodes.
 2.  Improper operation may cause damage to the laser diodes, especially for the over current operation. Seller doesn't take responsibility for these damage or loss.
