780nm 785nm 790nm 792nm 795nm 5000mW 红外半导体激光器 可模拟调制

780nm 785nm 790nm 792nm 795nm 5000mw ir Semiconductor laser Analog modulation

[Specifications]

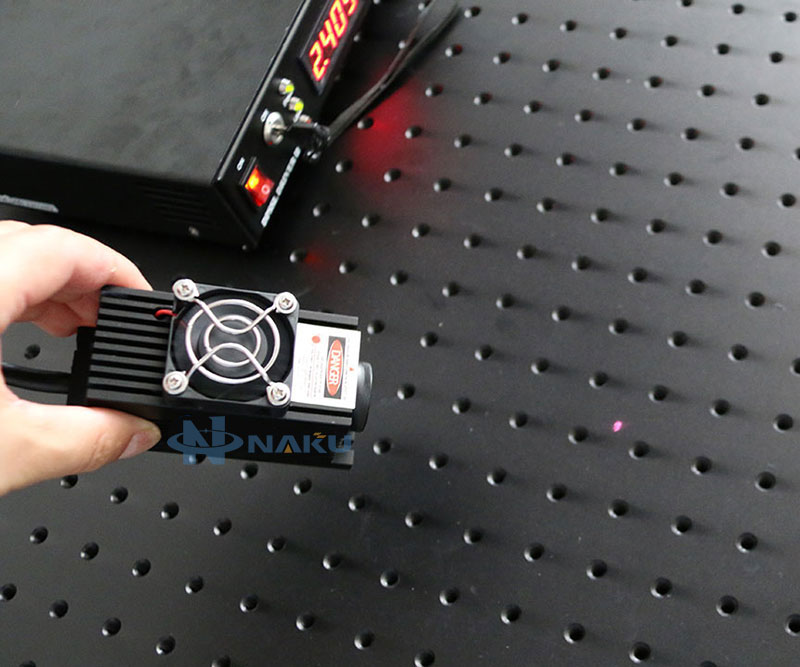

Product Name: Semiconductor laser

Output Wavelength: 780nm±2nm(If you need 785nm/790nm/792nm/795nm.)

Spatial mode: Multi mode

Spectrum Width(FWHM): <2nm

Output Power: 5000mW

Operating mode: CW or Modulation

Polarization: 10:1

Pointing stability: <0.05 mrad

Beam Size: 6mm

Beam Height: 25mm

Beam Divergence:  2.5 mrad

Power Stability:  <3% per 2 hrs

Temperature Stabilizing: TEC

Warm Up Time: <5 minutes

Beam Quality (M2): <2

Optimum Operating Temperature: 20~30℃

Storage Temperature: 10~50℃

MTTF(mean time to failure): 10,000 hrs

Laser head dimensions: 100(L)x40(W)x50(H)mm3

Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)

Modulation:  0~10khz Analog(Default) (If you need TTL modulation, please contact us.)

Warranty: 1 Year

[Packing List]

1 x 780nm IR  Semiconductor laser

1 x Power supply
