505nm 50mW 绿点激光模组 可调焦距 带DC5V电源

价格:$1.00

(最新的价格,请联系我们.)

请选择:





购买数量:


505nm 50mW 绿点激光模组 可调焦距 带DC5V电源

505nm 50mW Green Dot Laser Module With Adjustable Focus Design 5V DC Power Supply


This dot module uses OSRAM semiconductor laser diode, the range is more than 3 kilometers.

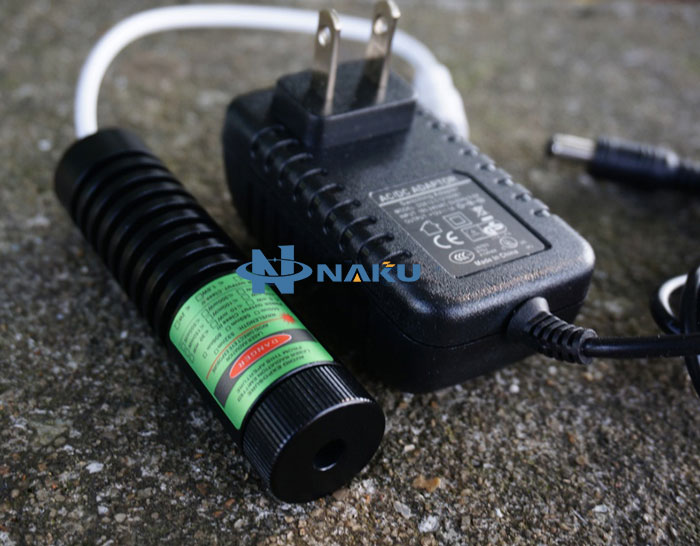

Using 5V adapter power supply, can be directly inserted into the 220V socket power supply.

[Features]
1.  Without preheating, power saving, small fever, can work for a long time.
2.  Using 5V voltage input power.
3.  With adjustable focus design, according to the need to adjust the spot size.

SPECIFICATIONS:
Name:  505nm 50mW Dot Laser Module
Wavelength: 505nm±10nm
Output power: 50mW
Laser Shape: Dot
Light Output Angle:  <1.5 mard
Surface Treatment:  Anode black
Shell Material: Aviation aluminum
Circuit Control:  Buck Constant Current
Reverse Protection:  Yes
Operating Voltage:  DC=5V
Operating current:  I<100mA
Warm-up time:  0
Working Temperature:  0 ℃ ~ +60 ℃
Storage Temperature:  -40 ℃ ~ +85 ℃
Structure: laser tube + lens + heat dissipation shell
Size: 20*58mm




505nm 50mW Dot Laser Module

505nm 50mW Dot Laser Module

505nm 50mW Dot Laser Module

505nm 50mW Dot Laser Module

505nm 50mW Dot Laser Module

505nm 50mW Dot Laser Module
