650nm/635nm 5mW 直径0.15mm 超细线宽红色激光模组
650nm/635nm 5mW Seiko laser 0.15mm diameter Very fine line width Red laser module
Characteristic:
Ultra small round spot, superfine red line, uniform brightness;
New German import tube + optical coating glass lens group, high light pass rate, low loss energy, can continuously work for 24 hours;
The fan angle can be customized from 5degree ~110 degree.

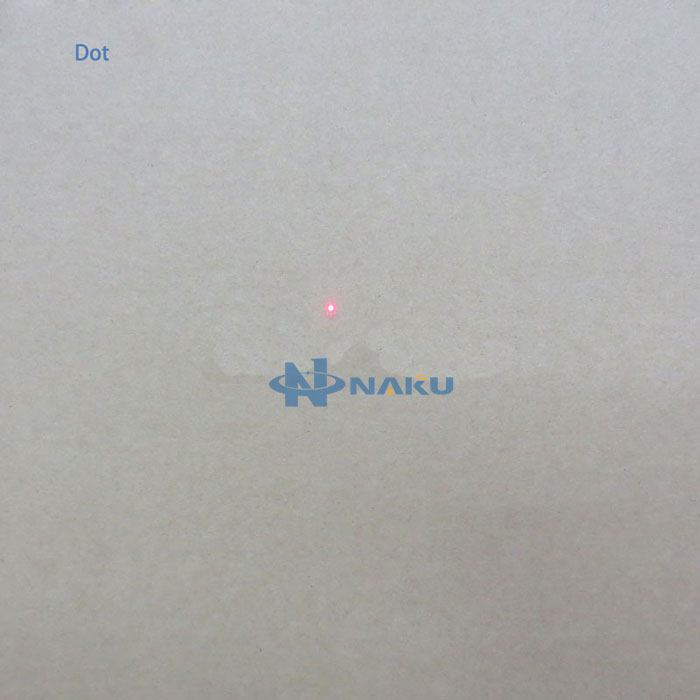

Dot shape:
In the daytime, the range is 0-200 meters;
Outside the day, the range is 0-80 meters;
In the dark environment, the range is 0-500 meters.
Package list:
- Red laser module;
- Power supply;
- Laser module holder.
Line shape:
The indoor working environment can reach 5 meters.

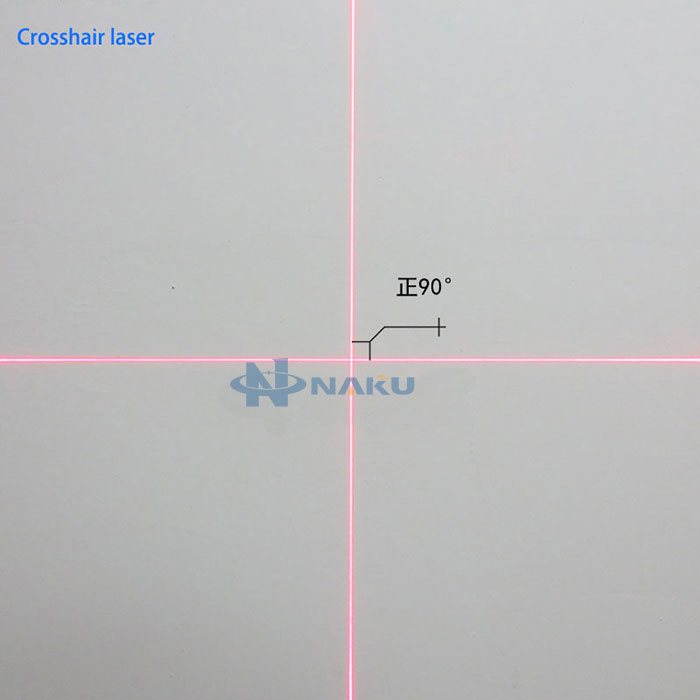

Cross-hair:
In the indoor environment can reach 3 meters (horizontal and vertical lines cross were 3 meters long).
Wavelength: 635nm/650nm red light (customizable)
Output Power: 5mW (customizable)

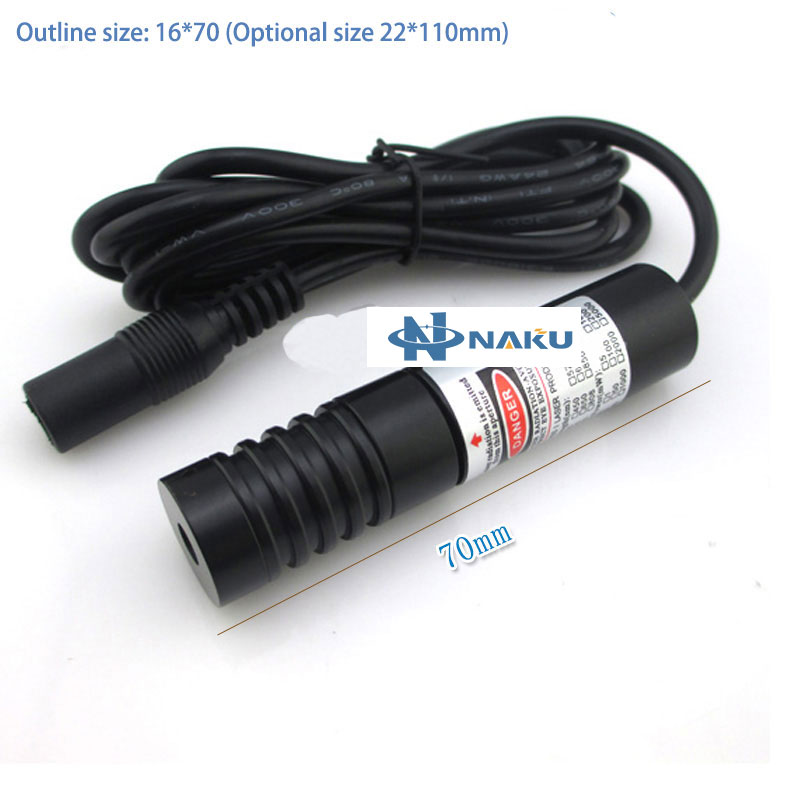

Size: 16*70mm (optional size: 22*110mm)
Power supply voltage: DC 2.8V to 5.2V (customizable)
Working current: <50mA
Dot size / Line width:

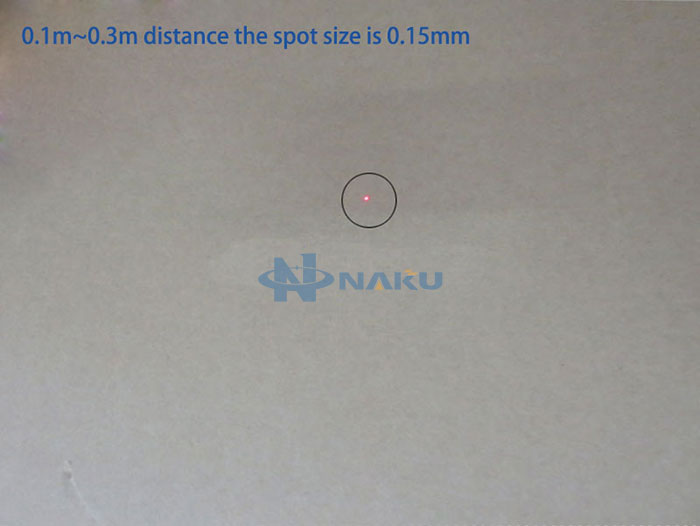

Adjustable spot / line width at 0.1 meters -0.3 meters: 0.15mm
Adjustable spot / line width at 0.3 meters -0.5 meters: 0.25mm
Adjustable spot / line width at 0.5 meters -0.8 meters: 0.4mm
Adjustable spot / line width at 0.8 meters -1 meters: 0.5mm

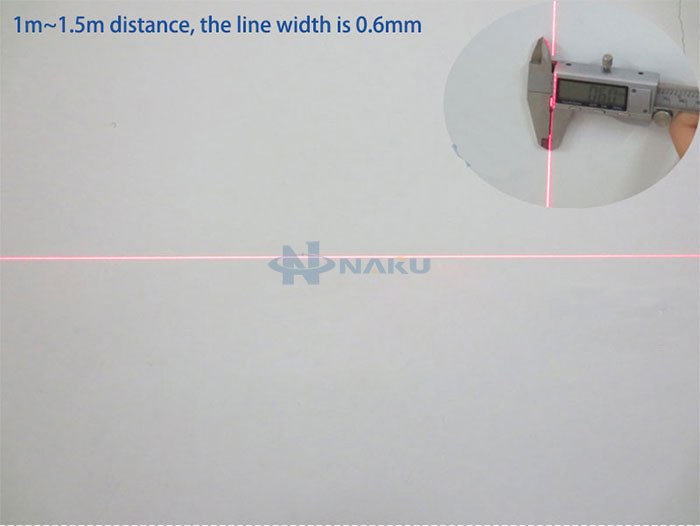

Adjustable spot / line width at 1 meters -1.5 meters: 0.6mm
Adjustable spot / line width at 1.5 meters -2 meters: 0.8mm
Adjustable spot / line width at 2 meters -2.5 meters: 0.9mm
Adjustable spot / line width at 2.5 meters -3 meters: 1mm
