671nm 1000mW 红色 DPSS激光器 固体激光器

671nm 1000mw  Red DPSS Laser solid state laser

[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability

[Specifications]
Product Name: 671nm  Red DPSS Laser
Laser Shape: Circular, aspect ratio<1.1:1
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 671nm
Output Power: 1000mW
Spatial mode: TEM00
Operating mode: CW or Modulation
Modulation:  Analog or TTL modulation 0~30Khz
Linewidth: <1 nm
Polarization: 100:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2): 2 mm
Divergence Angle: 1.0 mrad
Power Stability:  <±5% per 4 hrs
Light High: 25mm
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <1.2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser dimensions: 100x40x50 mm(fan adds 10/20mm height)
Warranty: 1 Year

[Applications]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

[Package include]

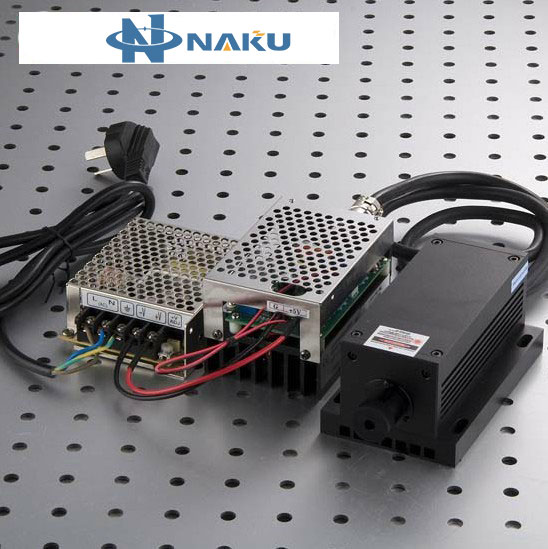

1 x 671nm DPSS Laser
1 x Laser power supply
