532nm 被动调Q激光器 脉冲激光 纳秒激光 -- LCD液晶类型

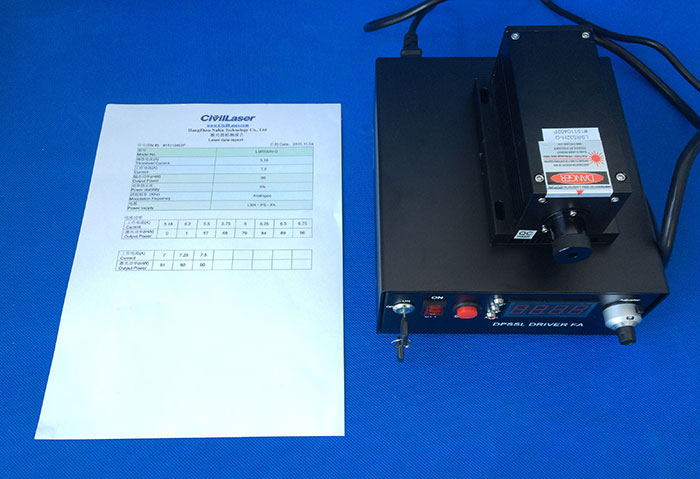

532nm 50~200mW Passively Q-switched Laser pulsed laser Nanosecond laser -- LCD repair(Advanced Version)

[Features]
1. Passively Q-switched
2. Adjustable repetition frequency

[Advantages]
Repeat rate adjustable
External controllable
For application in micro cutting/marking, signal detection, etc.
Easy use & maintenance free
Longlife operation
High efficiency
High reliability

[Specifications]
Model No: LSR532HY-Q
Wavelength: 532nm
Spatial Mode: TEM00
Average output power: 50~200mW
Single Pulse energy: 20-40uJ
Pulse Width: 15-30ns
Peak Power: 300W~1KW
Repeat Rate: 1Hz~10K Hz
Beam Spot Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05mrad
Beam Diameter(1/e2): <1.5mm
Beam Divergence: < 1.5mrad
Power Stability: <±3% per 2 hrsBeam
Height: 29mm
Temperature Stabilizing: TEC
Warm Up Time: <5minutes
Beam Quality (M2): <2
Optimum Operating Temperature: 20~30°C
Storage Temperature: 10~50°C
Life Time: 10,000 hours
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Warranty: 1 Year

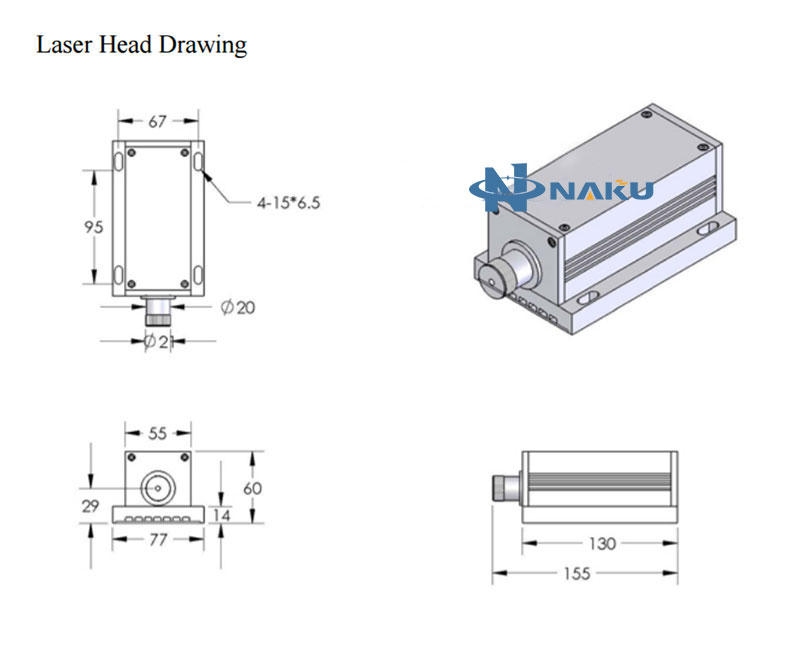

Laser Head Dimensions: 155(L)x77(W)x60(H)mm3
