405nm 120mw Blue Violet  Laser Diode  SONY  AL405T120 TO-18
Output Wavelength: 405nm(Typ)
Output power: 120mw CW

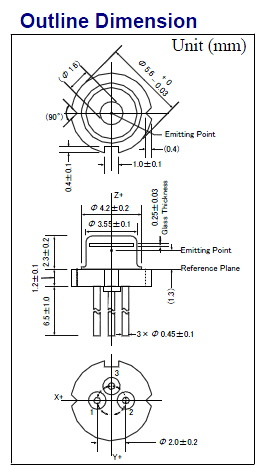

Package Type: TO-18 φ5.6 with PD
Brand: SONY
Module: AL405T20 TO-18
If there are any product problems with this laser diode within 3 days of receiving it, you can return it for a full refund or exchange new products.


Absolute Maximum Ratings


Parameter Symbols Ratings Units
Optical Output CW Po 140 mW
LD Reverse Voltage Vr(LD) 5 V
PD Reverse Voltage Vr(PD) 20 V
Operating Temperature Topr -10~+70
Storage Temperature Tstg -40~+85

Electrical and optical Characteristics


Parameter Symbols Conditions Min Typ Max Units
Optical Output Power Po CW  - - 120 mW
Peak Wavelength λP Po=120mW  400 405 410 nm
Threshold Current Ith CW  - 35 50 mA
Operating Current Iop Po=120mW  - 120 150 mA
Slop Efficiency η CW  1.2 1.4 1.9 W/A
Operating Voltage Vop Po=120mW  - 4.8 5.5 V
Beam Divergence Perpendicular Qv(θŠ¥) Po=120mW 15.0 19.5 23.0 °(deg.)
Beam Divergence Parallel Qh(θ//) Po=120mW 7 9 12 °(deg.)
Off Axis Angle Perpendicular dQv(–³Î¸Š¥) Po=120mW -2.5 - 2.5 °(deg.)
Off Axis Angle Parallel dQh(–³Î¸//) Po=120mW -2.0 - 2.0 °(deg.)
Monitor Current Im Po=120mW 0.2 0.4  0.7 mA



It's a second-hand laser diode.
