638nm 639nm 2.1W 激光二极管 ML562G85 三菱红色高功率半导体激光

638nm 639nm 2.1W 激光二极管 ML562G85 三菱红色高功率半导体激光

638nm 639nm 2.1W Laser Diode ML562G85 Red High Power Semiconductor Laser Mitsubishi

[Features]
1. 2.1W output power in CW and brilliant 639-nm red light
2. Widest operating temperature range for a red LD thanks to improved heat dissipation

[Specifications]
Product Brand: Mitsubishi
Model Number: ML562G85
Lasing Node: Lateral multi-mode
Threshold Current: 550mA (TC* = 25°C,CW**)
Output Power: 2.1W (TC = 25°C,Iop *** = 2.25 A,CW)
Operating Voltage: 2.25V (TC = 25°C,Iop = 2.25 A,CW)
Wavelength: 639 nm (TC = 25°C,Iop = 2.25 A,CW)
Operating Case Temperature: TC = 0°C to 45°C (Po**** = 2.1 W,CW)
Package: φ9.0 mm TO-CAN

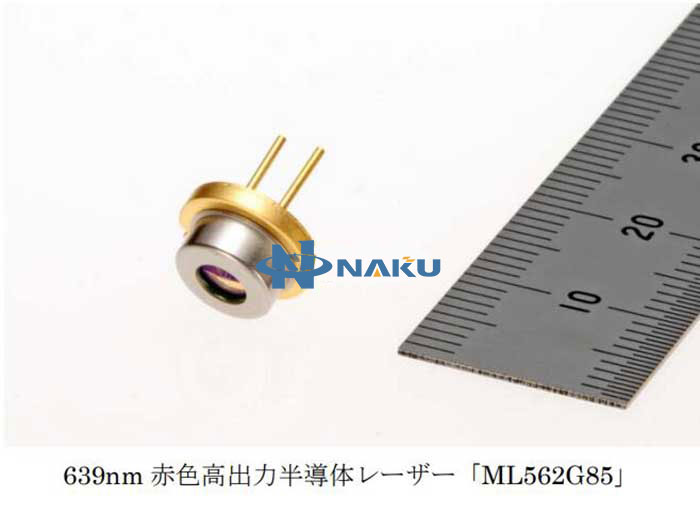

ML562G85 lasser diode
