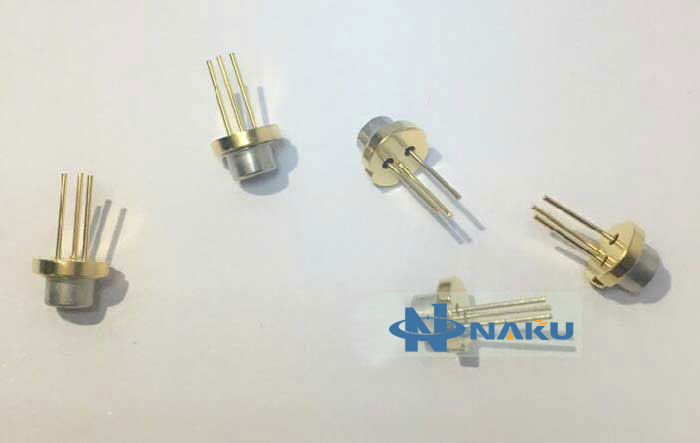

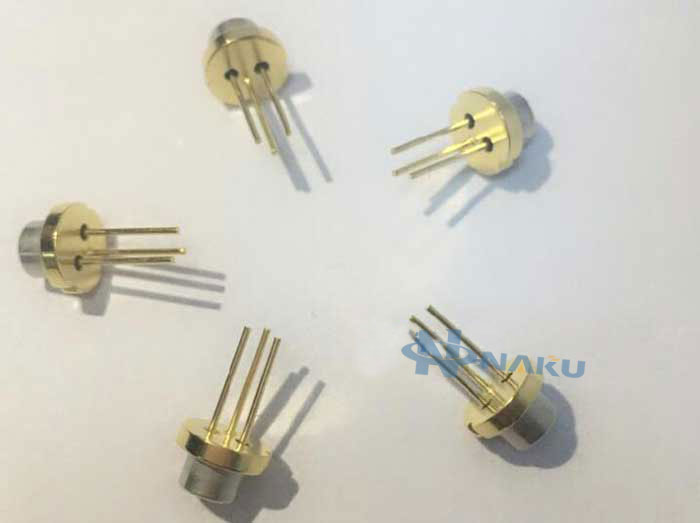

三菱 ML129F27 CW 120mW 脉冲300mW 660nm 红色激光二极管

Mitsubishi ML129F27 CW 120mW Pulse 300mW 660nm Red Laser Diode

[Features]
1. High output power: 300mW (Pulse)
2. Visible light: 660nm

[Specifications]
Product Brand: Mitsubishi
Product Model: ML129F27
Diameter: φ 5.6 mm TO18
Wavelength: 660nm(typical) / + 5nm
CW Output: 120 mW
Pulse Output Power (tp=50ns, Duty=40％) 300mW
Voltage:   3V DC
Current:  200mA Po=120mW CW
               430mA  Po=300mW Pulse
Beam Spread:  parallel 10° when 120mW CW
                        vertical17°  when 120mW CW
Operating Temperature: -10 ~ 75℃
Storage Temperature: -40 ~ 100℃
