532nm 100mW~300mW 绿光dpss激光器 绿光泵浦激光器
532nm 100mw~300mw green dpss laser green pumped laser
[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
[Specifications]

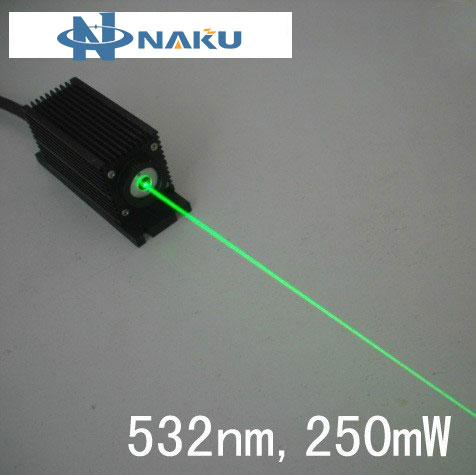

Product Name: 532nm 100mw~300mw Green DPSS Laser
Lead Time: 3~7 workingdays! Custom product available!
Output Wavelength: 532 nm
Output Power: 100mw~300mw (Choose)
Spatial mode: TEM00
Residual infrared(1064&808nm): <0.01%
Operating mode: CW or Modulation
Polarization mode: Linear
Laser Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2): 2 mm
Divergence Angle: 1.0 mrad
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <1.2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser head dimensions: 100(L)x34(W)x45(H) mm
Power Supply #1: Standard type power supply 100(L)x70(W)x55(H)mm
Power Supply #2: Lab Adjustable power supply 178(L)x197(W)x84(H)mm
Warranty: 1 Year
[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar
[Package include]

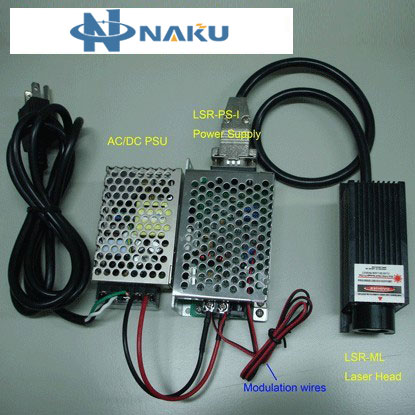

1 x 532nm dpss laser
1 x Laser power supply
