650nm 50mW~200mW 红色高功率线形激光模组 全套

650nm 50mW~200mw Red high power Line Laser module Complete set

SPECIFICATIONS:
Name:  650nm 50mW~200mw Red high power Line Laser module Complete set
Output Wavelength: 650nm ±5nm
Output Power: 50mw, 100mw, 200mw
Class level: Class IIIB
Laser Shape: Line
Range: <30 meters
Material: Copper
Surface treatment / color: Electroplating silver white
Laser type: Red laser
Shape/dimension: Line, line width<1.0mm, <1.5mm at 1m distance
Fan angle: 5°、20°,36°、45°,60°、90°、110° (Optional, 90° is default,leave a comment if you need other fan angle)
Circuit control: ACC
Size: Φ12×36mm
Operating Voltage:  DC=3~3.5V
Operating current: I<320mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Warranty: 12 Months Factory warranty

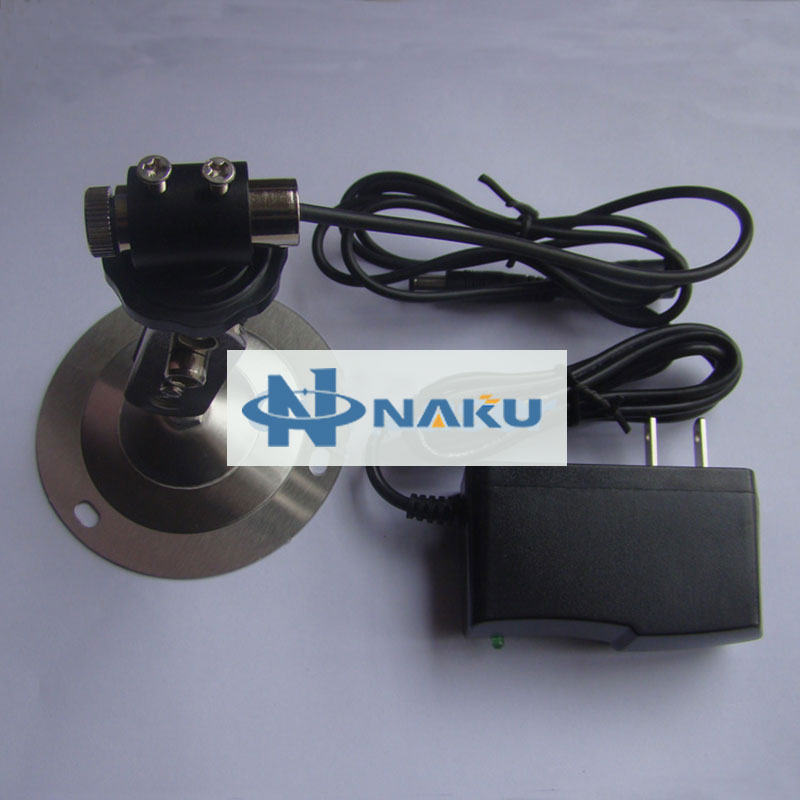

Package List:
1*Red line Laser Module;
1*Power adapter;
1*Laser holder

650nm Red high power Line Laser module Complete set

650nm Red high power Line Laser module Complete set

650nm Red high power Line Laser module Complete set

650nm Red high power Line Laser module Complete set
