650nm 10mW 红光 激光二极管 AL650T10-TO18
650nm 10mw Red Laser Diode AL650T10-TO18
[Specifications]
Output Wavelength: 650±10nm

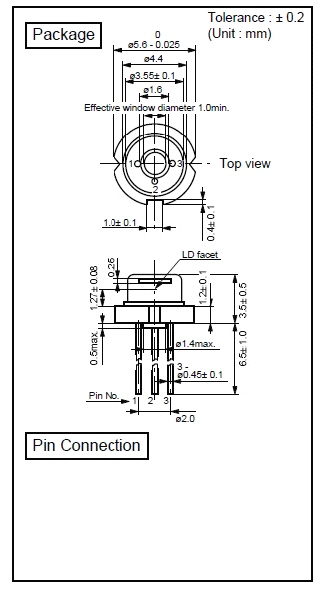

Package Type: TO-18 (φ5.6mm)
Module: AL650T10-TO18
Output power: 10mW CW
Note:
If there are any product problems with this laser diode within 3 days of receiving it, you can return it for a full refund or exchange new products.
Absolute Maximum Ratings
(Tc=25℃)
Parameter |
Symbols |
Ratings |
Units |
Optical Output |
CW |
Po |
10 |
mW |
LD Reverse Voltage |
Laser |
Vr(LD) |
2 |
V |
PD Reverse Voltage |
Laser |
Vr(PD) |
30 |
V |
Operating Temperature |
Topr |
-10~+50 |
℃ |
Storage Temperature |
Tstg |
-40~+85 |
℃ |
Electrical and optical Characteristics
(Tc=25℃)
Parameter |
Symbols |
Conditions |
Min |
Typ |
Max |
Units |
Peak Wavelength |
λP |
- |
645 |
655 |
660 |
nm |
Threshold Current |
Ith |
- |
- |
15 |
20 |
mA |
Operating Current |
Iop |
- |
- |
20 |
22 |
mA |
Operating Voltage |
Vop |
- |
- |
2.2 |
2.5 |
V |
Slop Efficiency |
η |
- |
0.5 |
1.0 |
1.4 |
mW/mA |
Beam Divergence |
Parallel |
Qh(θ//) |
- |
8 |
10 |
12 |
°(deg.) |
Beam Divergence |
Perpendicular |
Qv(θŠ¥) |
- |
24 |
27 |
32 |
°(deg.) |
Off Axis Angle |
Parallel |
dQh(–³Î¸//) |
- |
-3 |
- |
+3 |
°(deg.) |
Off Axis Angle |
Perpendicular |
dQv(–³Î¸Š¥) |
- |
-3 |
- |
+3 |
°(deg.) |
Emission point accuracy |
–³x–³y–³z |
- |
-80 |
0 |
+80 |
um |
