532nm 1000mW 1500mW 绿光 DPSS激光器 TTL调制 高功率泵浦激光器

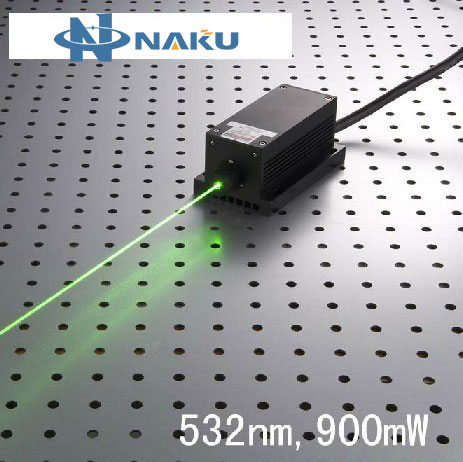

532nm 1000mW 1500mW Green DPSS with TTL Modulation High Power Pumped Laser
[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
[Specifications]
Product Name: 532nm 1000mw 1500mw Green DPSS Laser
Lead Time: 3~7 workingdays! Custom product available!
Output Wavelength: 532 nm
Output Power: 1000mw / 1500mw(Choose)
Spatial mode: near TEM00
Operating mode: CW or Modulation
Modulation: 0~30khz Analog or TTL modulation
Polarization: >100:1
Laser Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2): 3 mm
Divergence Angle: 2.0 mrad
Beam height from base: 29mm
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs

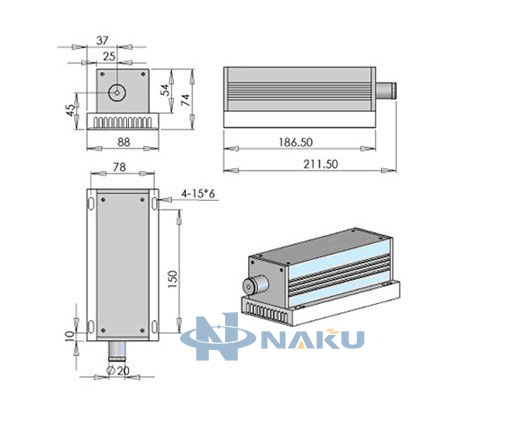

Laser head dimensions: 155(L)x77(W)x60(H) mm
Power Supply #1: Standard type power supply 100(L)x70(W)x55(H)mm
Power Supply #2: Lab Adjustable power supply 178(L)x197(W)x84(H)mm
Warranty: 1 Year
[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

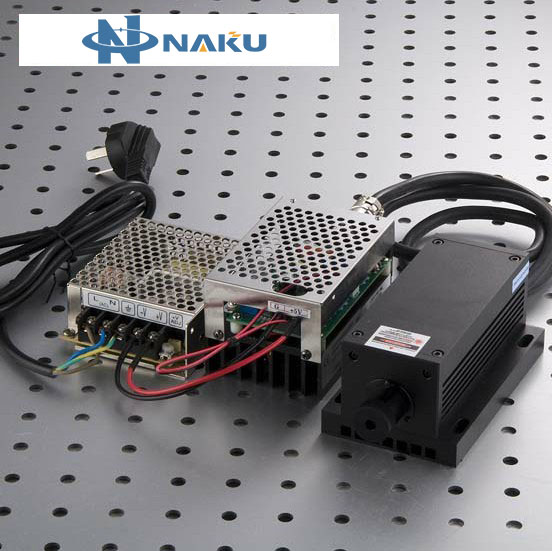

[Package include]
1 x 532nm dpss laser
1 x Laser power supply
532nm 1W high power green laser dpss with power supply -- power adjustable from Civillaser
Custom case: 8 meters cable wire for green dpss laser
