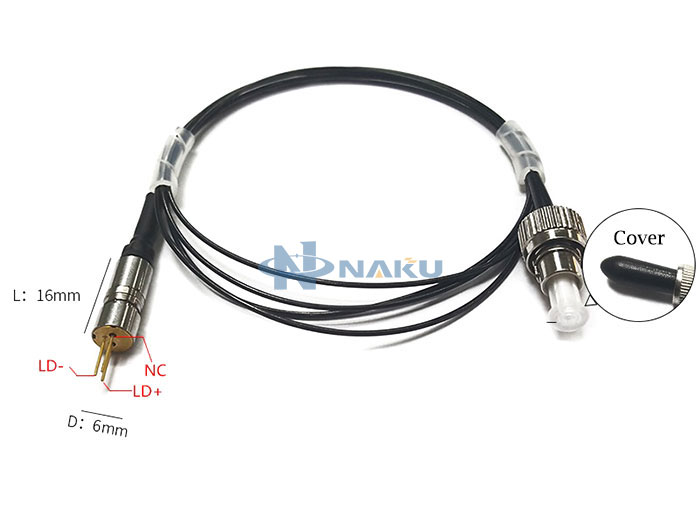

405nm 20mW 蓝色 尾纤激光 多模 光纤耦合激光器

405nm 20mW Blue Pigtailed Laser Multimode Fiber Coupled Laser

[Specifications]
Wavelength: 405±5nm
Output Power: <20mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
Fiber Core Diameter: 200um
Fiber Length: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Choose)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Operating Voltage: DC5V
Operating Current: <60mA
Operating Voltage With Power Diver: DC 6V
Circuit Control Mode: ACC / TTL frequency modulation (Choose)
Operating Temperature: 0~75℃
Storage Temperature: -40~85℃
Size: Φ6*16mm
