尾纤激光 520nm 30mW 绿色光纤耦合激光器

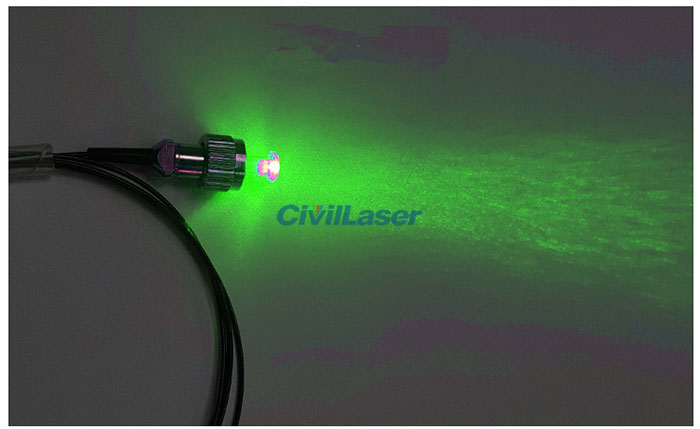

Pigtailed Laser 520nm Green 30mW Fiber Coupled Laser

[Specifications]
Wavelength: 520±10nm
Output Power: <30mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%

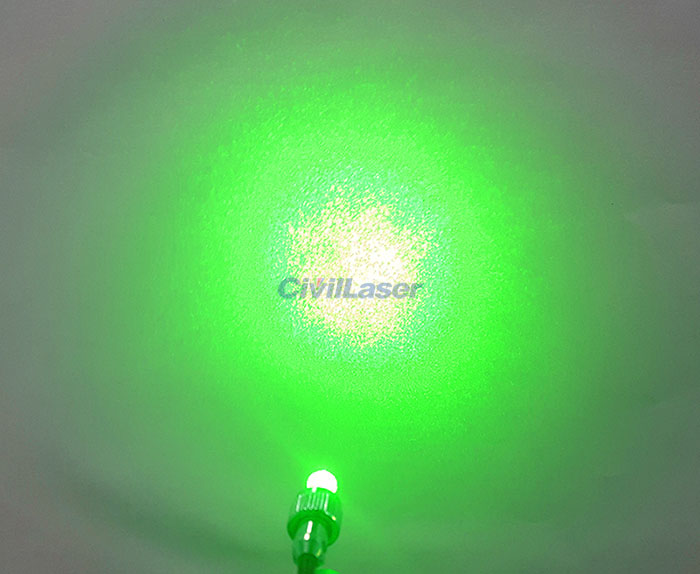

Spot Form: Astigmatism
Fiber Core Diameter: 200um
Fiber Length: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Choose)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Operating Voltage: DC 6.5V
Operating Current: <140mA
Operating Voltage With Power Diver: DC 3~5V
Circuit Control Mode: ACC / TTL frequency modulation (Choose)
Operating Temperature: -20~60℃
Storage Temperature: -20~85℃
Size: Φ6*16mm
