405nm 300mW 蓝色 光纤耦合激光器 尾纤激光二极管模组

405nm 300mW Blue Fiber Coupled Laser Pigtailed Laser Diode Module

[Specifications]
Product Name: 405nm pigtailed laser
Wavelength: 405±6nm
Output Power: <300mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
Fiber Core Diameter: 200μm
Fiber Length: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Choose)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Operating Voltage: DC 4.5V
Operating Voltage With Power Diver: DC 6V
Operating Current: <400mA
Circuit Control Mode: ACC / TTL frequency modulation (Choose)
Operating Temperature: -0~50℃
Storage Temperature: -40~85℃

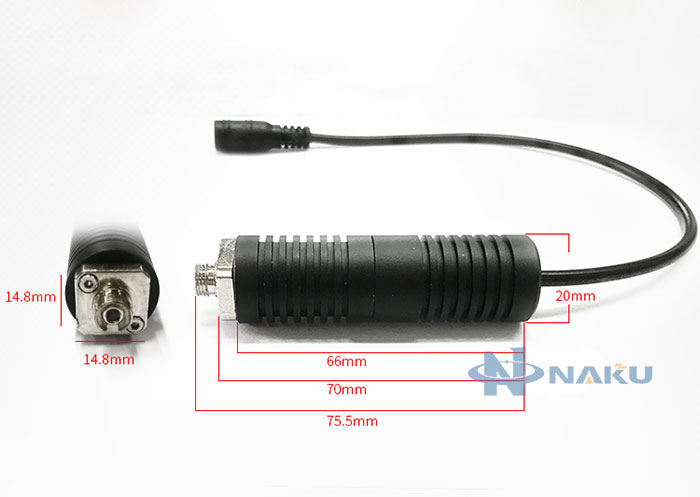

Size: Φ20*70mm


Note：Can customize 40mw single mode fiber laser, if you need 40mw single mode fiber laser, please leave a comment when you place the order.
