520nm 绿色 光纤耦合激光器 1000mW 尾纤激光模组带电源

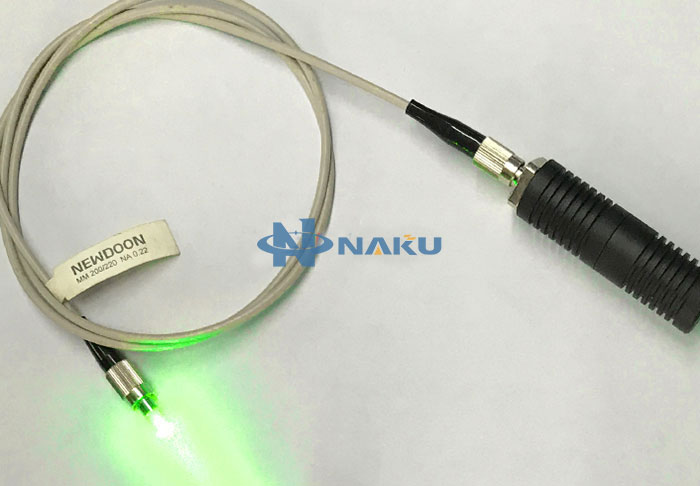

520nm Green Fiber Coupled Laser 1000mW Pigtailed Laser Module With Power Supply

[Specifications]
Product Name: 520nm pigtailed laser
Wavelength: 520±10nm
Output Power: <1000mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism
Fiber Core Diameter: 200μm
Fiber Length: 1m (Customizeable)
Fiber Interface Type: FC/SMA905/LC/SC (Choose)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Operating Voltage: DC 4.6V
Operating Voltage With Power Diver: DC12V
Operating Current: <2000mA
Circuit Control Mode: ACC / TTL frequency modulation (Choose)
Operating Temperature: -0~60℃
Storage Temperature: -40~85℃
Size: Φ20*70mm
