650nm 30mW 红色激光二极管 QSI 高品质二极管 QL65I7S TO-18

650nm 30mW Red Laser Diode QSI High Quality LD QL65I7S TO-18

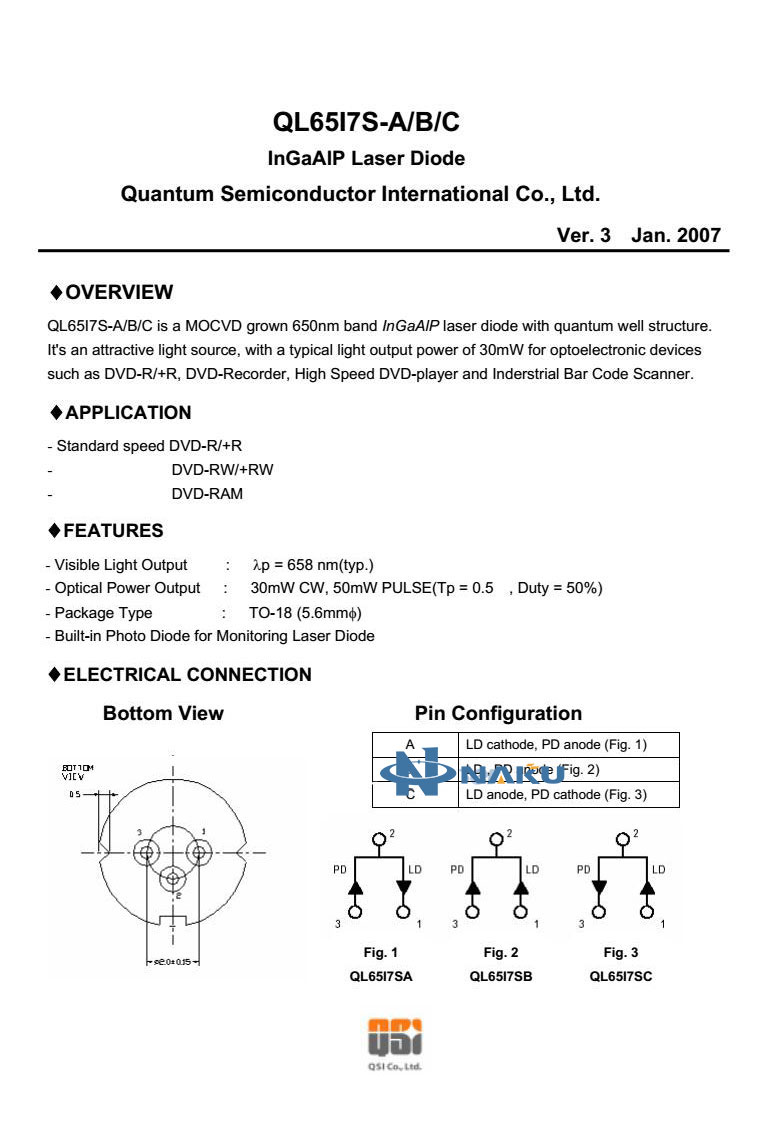

QL65I7S-A/B/C is a MOCVD grown 650nm band InGaAlP laser diode with quantum well structure. It's an attractive light source, with a typical light output power of 30mW for optoelectronic devices such as DVD-R/+R, DVD-Recorder, High Speed DVD-player and Inderstrial Bar Code Scanner.

[Features]
1. Visible Light Output: 650 nm(typ.)
2. Optical Power Output: 30mW CW, 50mW PULSE(Tp = 0.5㎲, Duty = 50%)
3. Package Type: TO-18 (5.6mm)
4. Built-in Photo Diode for Monitoring Laser Diode

[Applications]
1. Optical leveler
2. Laser pointer
3. Bar code reader
4. DVD player &DVD Rom
